Flexplate - Removal
Flexplate - Removal
REMOVAL
1.
Remove transaxle
2.

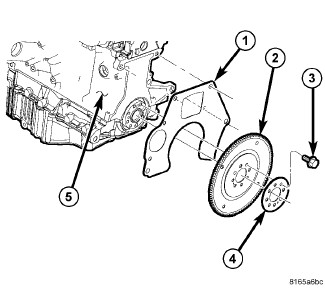

Remove
flex plate
retaining bolts (3).
3.
Remove shim (4) and
flex plate
(2).
