Flexplate - Installation

INSTALLATION

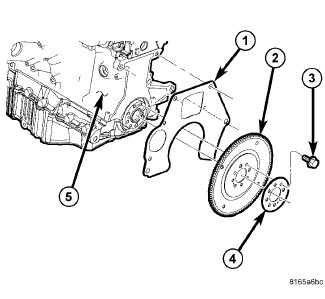

1. Install flex plate (2) and shim (4).
2. Install bolts (3) and torque bolts to 95 Nm (70 ft. lbs.).
3. Install transaxle.
