Description

DESCRIPTION










CAUTION: The clutch master cylinder (1) pushrod adjustment must not be used to change pedal freeplay or pedal height. Using the adjustable pushrod for these reasons will result in premature clutch wear or system over/undertravel.

NOTE: The clutch master cylinder/hydraulic release system does not have its own reservoir. This system is supplied fluid from the brake master cylinder reservoir.

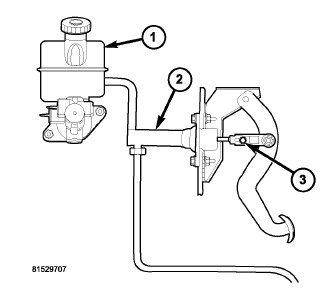

The clutch master cylinder (1) mounts to the dash panel and consists of a push rod (adjustable (3) on LHD models), a piston and cylinder housing, an interconnecting hydraulic tube and a supply hose which connects to the brake master cylinder reservoir (1) for fluid supply.
