Transmission Cooler: Description and Operation

AUTOMATIC TRANSMISSION OIL COOLER

Non - Turbo

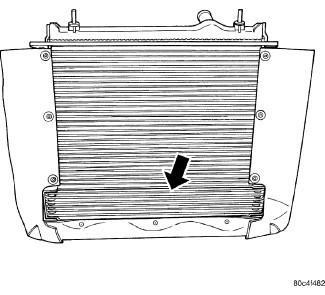

The automatic transmission oil cooler consists of an external air-to-oil type mounted in front of the radiator. Rubber hoses connect the oil coolers to the automatic transmission. Use only approved transmission oil cooler hoses and clamps for replacement. The hoses are molded to the fit space available.

Turbo










The automatic transmission oil cooler (3) consists of an external air-to-oil type mounted in front of the air conditioning condenser (2). Rubber hoses with quick-connect fittings connect the oil cooler to the automatic transmission. Use only approved transmission oil cooler hoses for replacement. The hoses are molded to the fit space available.
