Transmission Oil Pump - Assembly






ASSEMBLY

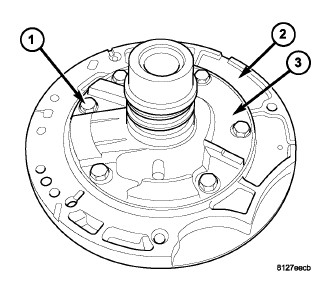

Oil Pump Assembly





1. Assemble oil pump.










2. Install and tighten reaction shaft support-to-oil pump housing bolts (1) to 29 Nm (21 ft. lbs.).
