Seat Belt Turning Loop Adjuster - Installation

INSTALLATION






WARNING: Front seat belt assemblies must be replaced after a collision.

NOTE: Front seat belt height adjuster must be in the lowest position when Installing adjuster knob.

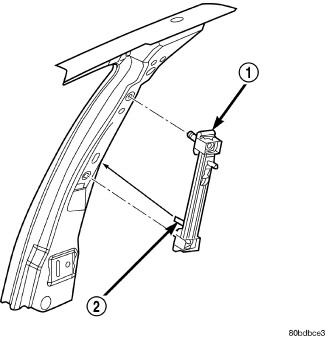

1. Place into position the front seat belt height adjuster (1).
2. Install bolts attaching the front seat belt height adjuster (1) to B-pillar. Tighten bolts to 40 Nm (30 ft. lbs.).
3. Install B-pillar trim B-Pillar Trim Panel - Installation.
