Camshaft Position Sensor - Description
DESCRIPTION

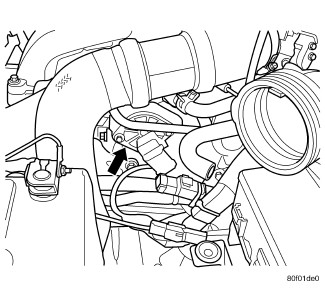

On 2.4L engines, the
camshaft position sensor
is mounted to the rear of the cylinder head.
