Removal

REMOVAL










1. Disconnect and isolate the negative battery cable.
2. Raise vehicle and support.

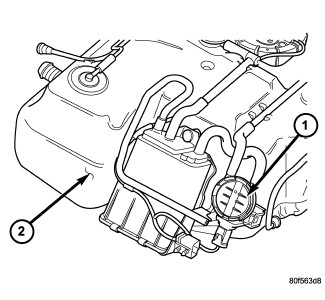

3. Disconnect electrical connector from natural vacuum leak detection (NVLD) valve (1).
4. Remove bolt securing NVLD valve bracket to EVAP canister bracket.
5. Remove hoses from NVLD valve.
6. Remove bolts and NVLD bracket from NVLD valve.
