Headlamp: Testing and Inspection
HEADLAMPS
Always begin any diagnosis by testing all of the fuses and circuit breakers in the system. Refer to Wiring Diagrams.

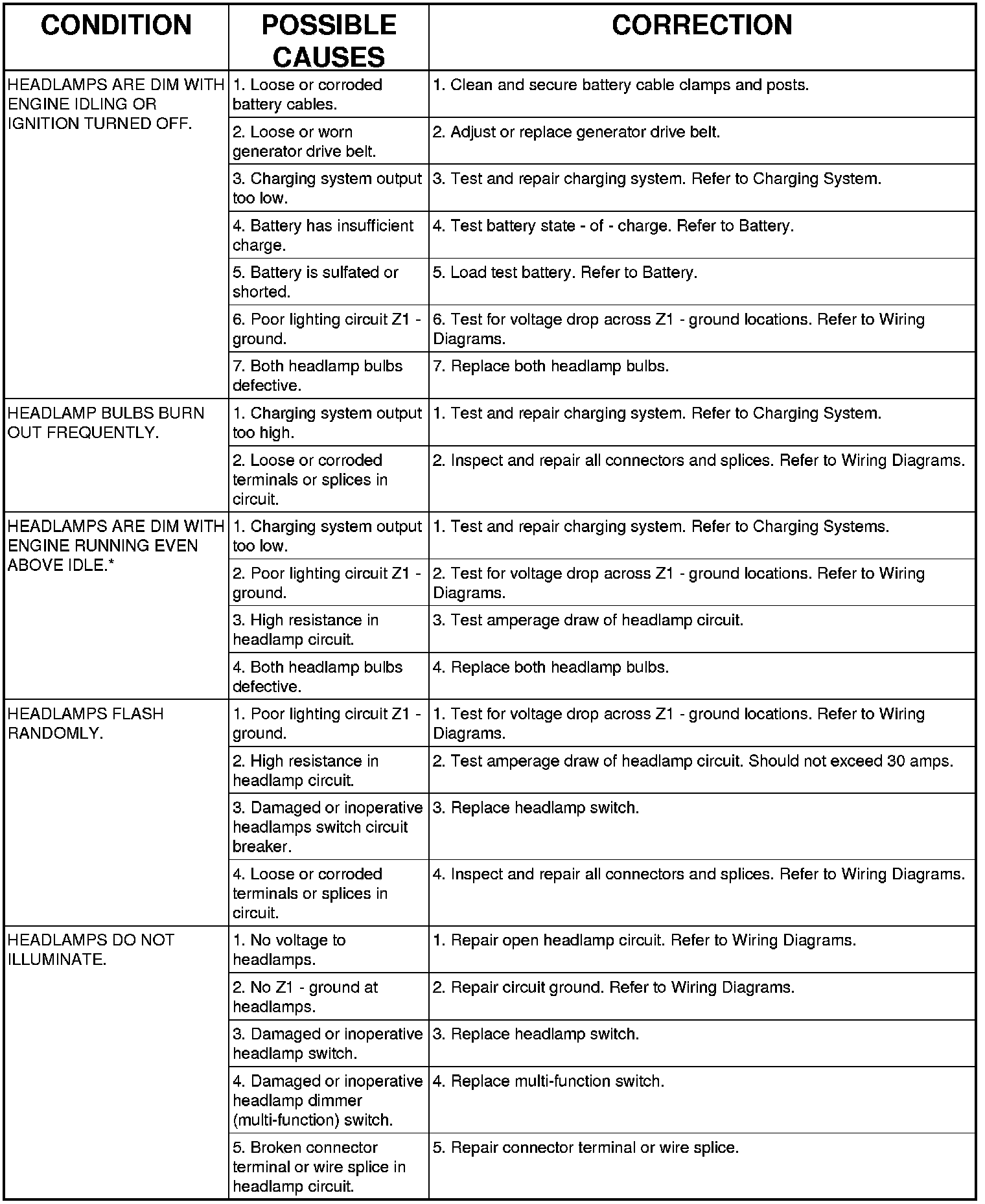

HEADLAMP DIAGNOSIS
HEADLAMPS
Always begin any diagnosis by testing all of the fuses and circuit breakers in the system. Refer to Wiring Diagrams.
HEADLAMP DIAGNOSIS
