Fog Lamp - Removal

REMOVAL





1. Remove fasteners attaching lower splash shield (2) to gain access to the rear of the fog lamp.

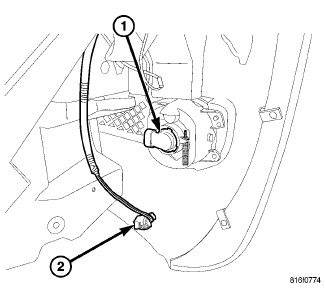

2. Disconnect wire connector (2) from fog lamp unit (1).

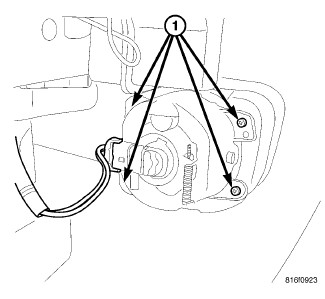

3. Remove four screws (1) attaching fog lamp unit to fascia.
4. Remove lamp unit from fascia.
