Center Console Flood Lamp - Installation

INSTALLATION

LAMP





1. Insert new bulb.
2. Gently secure bulb back into slot (1).

NOTE: When installing the retainer, ensure that the forward tabs are inserted properly into the slots in the instrument panel.

3. Connect the battery negative cable.
4. Close hood.

HOUSING

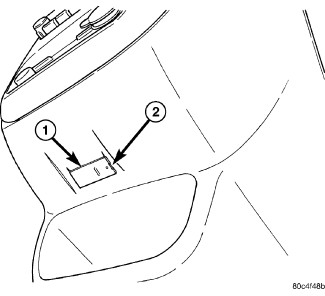

1. Place console flood lamp housing (1) near opening and connect the wire connector.
2. Place console flood lamp (1) into position and apply hand pressure to snap lamp into position.
