Backup Lamp - Removal

REMOVAL

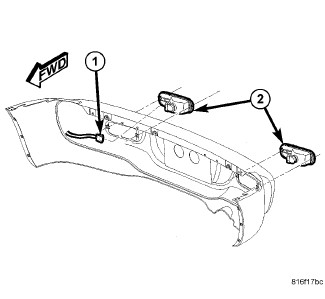

1. Using a fiber stick or equivalent, pry out on the outboard side of the lamp unit (2) at the fascia gap.
2. Remove back up lamp assembly (2).
3. Remove the bulb from the lamp housing (2) by rotating it counter-clockwise until the bulb socket is free of the housing (2).
