Instrument Cluster - Removal

REMOVAL





1. Open hood.
2. Disconnect and isolate the battery negative cable.
3. Remove the instrument cluster bezel Instrument Cluster Bezel - Removal.

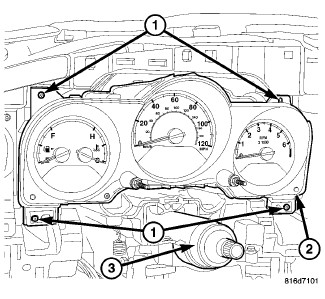

4. Remove four screws (1) to the instrument cluster (2).

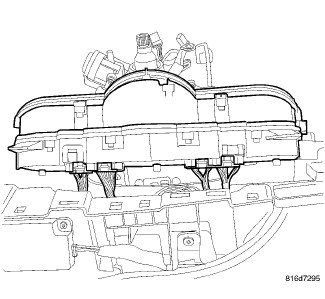

5. Pull straight back to expose the cluster electrical connectors.

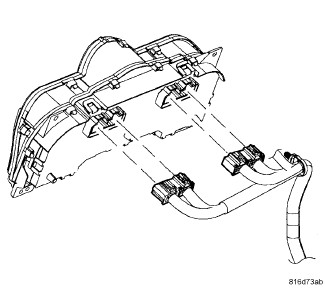

6. Disconnect the four cluster electrical connectors and remove cluster from vehicle.
