Exhauster - Installation






INSTALLATION

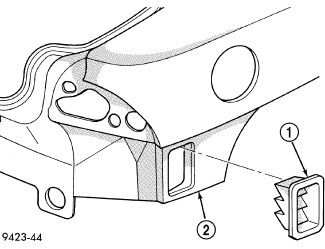

1. Place body vent in vehicle (1).
2. From behind rear bumper fascia below quarter panel, engage clips attaching body vent (1) to wheel well.
3. Lower vehicle.
