Blower Motor Resistor - Description

DESCRIPTION

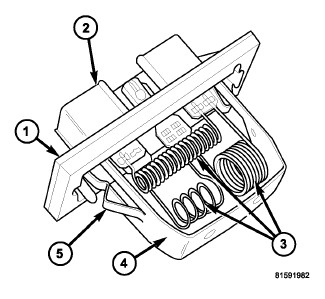

The blower motor resistor is mounted to the top of the dash panel in the engine compartment. The blower motor resistor consists of a molded plastic mounting plate (1) with an integral wire connector receptacle (2). Concealed behind the mounting plate are coiled resistor wires (3) contained within a protective stamped steel cage (4) with two integral retaining tabs (5). There are two different blower motor resistors depending on whether the vehicle is equipped with A/C or not.
