Temperature Door Cable - Installation

INSTALLATION

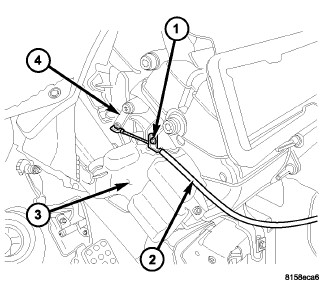

NOTE: Illustration shown with instrument panel removed for clarity.

1. Position the temperature control cable (2) to the left side of the HVAC air distribution housing (3).
2. Connect the temperature control cable to the blend door pivot lever (4).
3. Install the screw (1) that secures the temperature control cable to the air distribution housing. Tighten the screw to 2 Nm (17 in. lbs.).
4. Install the steering column opening cover Steering Column Opening Cover - Installation.
5. Connect the temperature control cable to the A/C-heater control A/C and Heater Control - Installation.
6. Install the center bezel onto the instrument panel Instrument Panel Bezel - Installation.
7. Reconnect the negative battery cable.
