Crankshaft Sprocket - Installation






CRANKSHAFT SPROCKET










CAUTION: The crankshaft sprocket is set to a predetermined depth from the factory for correct timing belt tracking. If removed, use of Crankshaft Damper/Sprocket Installer 6792 is required to set the sprocket to original installation depth. An incorrectly installed sprocket will result in timing belt and engine damage.

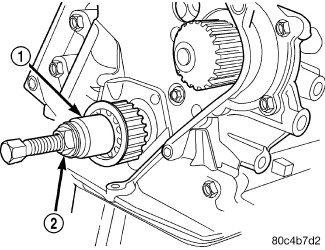

1. Install crankshaft sprocket using Crankshaft Damper/Sprocket Installer 6792 (1).
2. Install timing beltTiming Belt & Sprockets - Installation.
3. Install upper and lower front timing belt coversEngine Timing Cover(s) - Installation.
