Balance Shaft Module - Description






DESCRIPTION

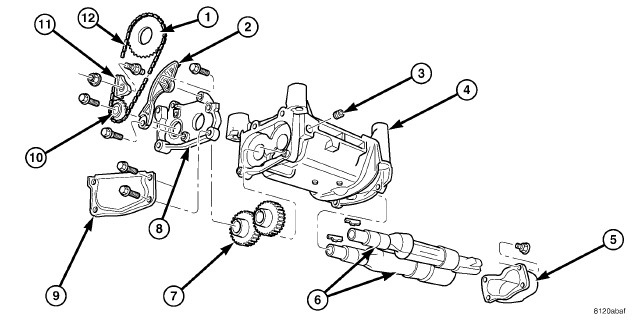

The 2.4L engine is equipped with two nodular cast iron balance shafts (6) installed in a cast aluminum carrier (4) attached to the lower cylinder block.
