Engine Oil Pump - Disassembly
DISASSEMBLY

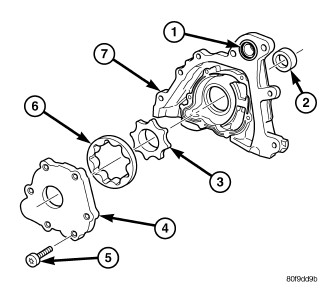

1. Remove oil pump cover fasteners (5), and lift off cover (4).
2. Remove pump rotors (3,6).
3. Wash all parts in a suitable solvent and inspect carefully for damage or wear.
DISASSEMBLY
1. Remove oil pump cover fasteners (5), and lift off cover (4).
2. Remove pump rotors (3,6).
3. Wash all parts in a suitable solvent and inspect carefully for damage or wear.
