Oil Cooler and Lines - Installation

INSTALLATION

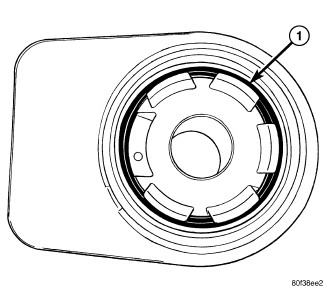

1. Replace oil cooler seal (1).

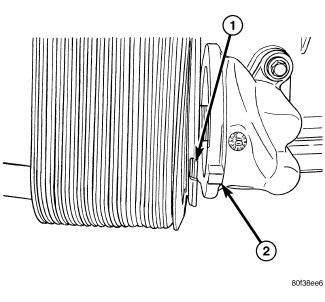

2. Lubricate seal and position oil cooler to oil filter adapter, aligning notch (1) to tab (2).

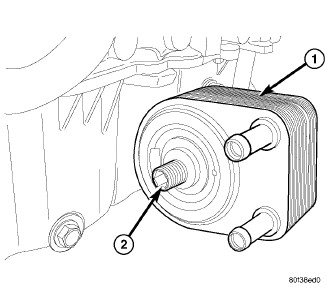

3. Install oil cooler connector bolt (2). Torque connector bolt to 55 Nm (41 ft. lbs.).
4. Install oil filter.





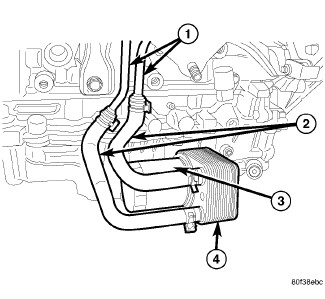

5. Connect oil cooler coolant hoses (1,2).
6. Lower vehicle.
7. Fill cooling system.
