Right

REMOVAL










1. Remove the engine assembly for the required clearance to access the engine mountEngine - Removal.

NOTE: The right engine mount attaching holes are slightly oversize to compensate for manufacturing tolerances. The mount has been set at the manufacturing plant for proper powertrain alignment. Therefore, it is necessary to mark the position of the mount before the attaching bolts (3) are loosened.

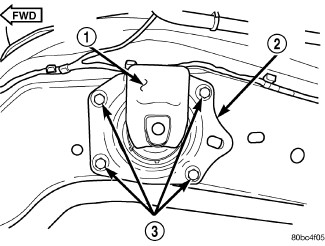

2. Using a permanent ink marker or equivalent, mark the position of engine mount (2) to the body frame rail.
3. Remove bolts (3) attaching mount to body.
4. Remove mount (2).
