Engine Block Heater - Installation

ENGINE BLOCK HEATER










1. Thoroughly clean core hole and heater seat.

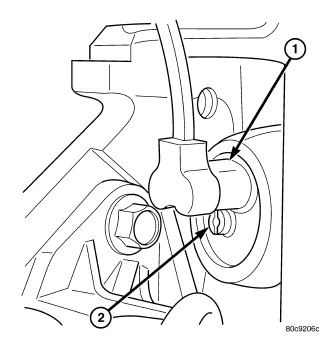

2. Insert block heater (1) assembly with element loop positioned upward.
3. With heater seated, tighten center screw (2) securely to assure a positive seal.
4. Connect power cord to block heater.
5. Lower vehicle.
6. Fill the cooling system.Service and Repair
