Radiator Hose Clamp - Description

DESCRIPTION










The cooling system uses spring type hose clamps. If a spring type clamp replacement is necessary, replace with the original Mopar(R) equipment spring type clamp.

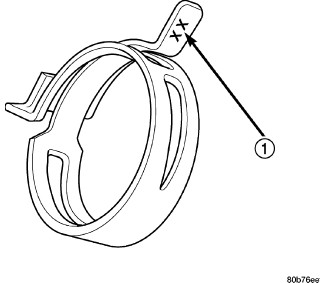

CAUTION: A number or letter (1) is stamped into the tongue of constant tension clamps. If replacement is necessary, use only a original equipment clamp with matching number or letter (1).

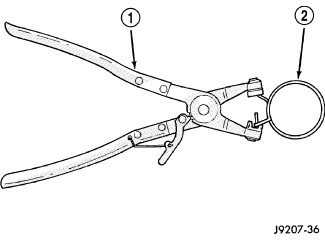

The spring type hose clamp applies constant tension on a hose connection. To remove a spring type hose clamp (2), use Special Tool 6094 (1) or 8495A (or equivalent), constant tension clamp pliers to compress the hose clamp.
