Integrated Control Unit (ICU) - Disassembly

DISASSEMBLY

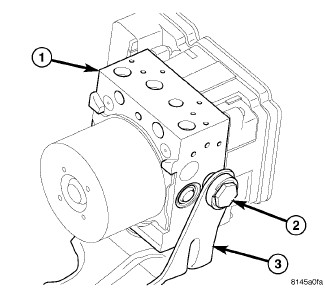

1. If the mounting bracket (3) needs to be removed from the ICU, remove the single mounting bolt (2), then slide the ICU's mounting pins out of the grommets in the bracket. Remove the mounting pins from the ICU as necessary.

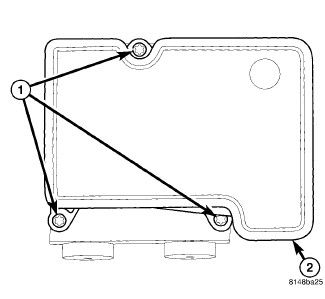

2. If not equipped with traction control, remove the three screws (1) attaching the ABM (2) to the HCU.

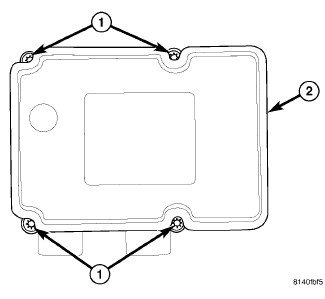

3. If equipped with traction control, remove the four screws (1) attaching the ABM (2) to the HCU.

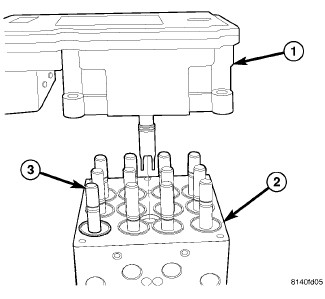

4. Separate the ABM (1) from the HCU (2).
