Liftgate Weatherstrip - Removal






REMOVAL










1. Open liftgate.

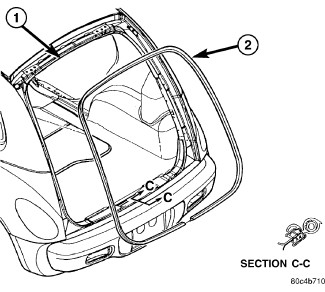

2. Remove weatherstrip (2), pull outward on the weatherstrip.
3. Remove outer belt weatherstrip from vehicle.
