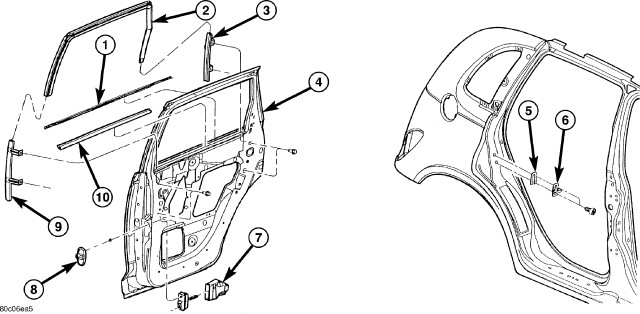

Rear Door Glass Run Weatherstrip - Installation

INSTALLATION










1. Clean butyl material from door flange area.
2. Place door run weatherstrip in position on window frame channel corners first.
3. Push door run weatherstrip into window frame channel.
4. Install door glass.
5. Install pull cup support bracket, water dam, and door trim panel.
