Door Weatherstrip - Removal






COUPE










1. Open door glass.
2. Remove weatherstrip screw at the rearward edge of door.

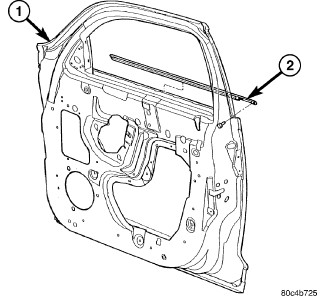

3. Pull upward at rear end of outer belt weatherstrip (2).
4. Remove outer belt weatherstrip (2) from vehicle.
