Rear Emergency Tow Hook(s) - Installation

INSTALLATION

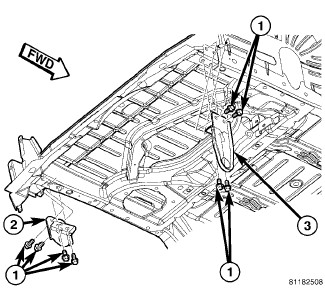

1. Place rear side rail tow hook into position on the rear frame rail.










2. Install four bolts (1) attaching rear side rail tow hook (3) to rear frame rail. Tighten bolts to 68 Nm (50 ft. lbs.).
3. Lower the vehicle from hoist.
