Side Rail Tie Down Bracket - Removal






REMOVAL










1. Raise the vehicle on hoist. Maintenance.

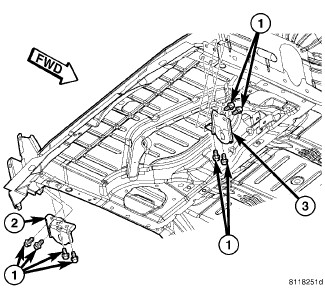

2. Remove the four bolts (1) attaching the right and left rear side rail shipping tie down bracket.
