Side Rail Tie Down Bracket - Installation

INSTALLATION

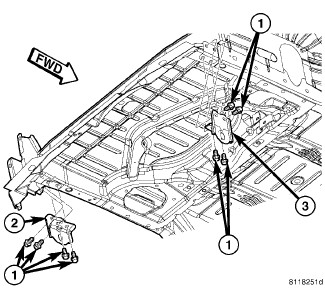

1. Place rear side rail shipping tie down bracket into position the rear frame rail.
2. Install the four bolts (1) attaching both left and right rear side rail shipping tie down bracket to rear frame rail. Tighten bolts to 68 Nm (50 ft. lbs.).
3. Lower the vehicle from hoist.
