Wind Deflector - Removal

REMOVAL










1. Fully open sunroof glass panel.

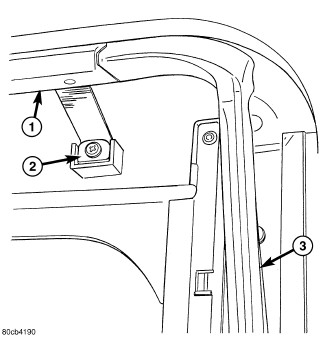

2. Remove two screws (2) attaching wind deflector straps to front crossmember.
3. Rotate wind deflector (1) into the vertical, 90° to the roof.
4. Push wind deflector arms down and rearward to disengage arms from spring hooks.
5. Remove wind deflector (1).
