Wind Deflector - Installation

INSTALLATION

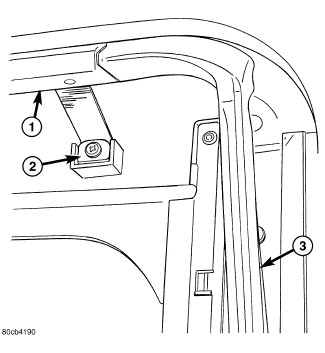

1. Place wind deflector (1) in position 90° to roof.
2. Push arms down and forward to engage spring hooks.
3. Rotate wind deflector (1) forward into correct position. Depress wind deflector down onto front crossmember to check spring function.
4. Install two screw (2) attaching wind deflector straps to front crossmember. Tighten screws to 1 Nm (9 in. lbs.).
