Sunroof Trough Guide - Removal

REMOVAL










1. Remove the sunroof glass panelSunroof Glass - Removal.
2. Place sunroof into the vent position.
3. Remove screws from the trough assembly one on each side.

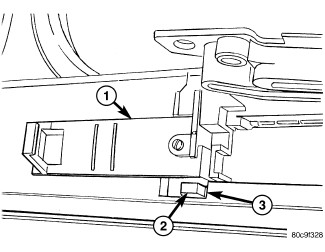

4. Remove trough (1).
5. Disconnect the guide link (2).










6. Slide trough guide (1) forward and disengage the sliders (3) through the notches (2) in guide channels.
