Sunroof Glass - Removal
REMOVAL

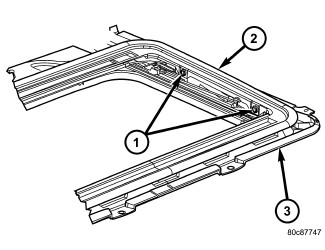

1. Move the glass panel (2) to the closed position.
2. Slide sunshade rearward to the open position.
3. Remove the four glass panel screws (1).
4. Lift off glass panel (2) and remove from vehicle.
REMOVAL
1. Move the glass panel (2) to the closed position.
2. Slide sunshade rearward to the open position.
3. Remove the four glass panel screws (1).
4. Lift off glass panel (2) and remove from vehicle.
