Sunroof / Moonroof Panel: Adjustments

ADJUSTMENTS










1. Move the sunshade rearward to the open position.
2. Move the sunroof glass panel to the fully closed position.

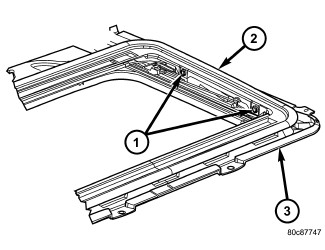

3. Loosen the forward attaching screws (1) on each side enough to make the front of the glass (2) to adjust up or down.
4. Adjust the front surface of the sunroof glass panel (2) 1.75 mm to 2.75 mm (0.07 in. to 0.11 in.) below the top surface of the roof.

NOTE: Top of the glass seal is 2.5 mm (0.1 in.) higher than the surface of the sunroof glass. Measure at 300 mm (11.8 in.) outboard of the center line of the vehicle.

5. Tighten the front glass panel (2) attaching two screws (1) to 3.5 Nm (31 in. lbs.).
6. Loosen the rear screws (1) on each side enough to make the rear adjustment.
7. Adjust the rear surface of the sunroof glass panel (2) 0.75 mm to.75 mm (0.03 in. to 0.07 in.) below the top surface of the roof.
8. Tighten the rear glass panel attaching two screws (1) to 3.5 Nm (31 in. lbs.).
9. Check for proper fit. If not OK, repeat glass panel adjustment.
