Sunroof

REMOVAL










1. Remove headliner. Headliner - Removal.

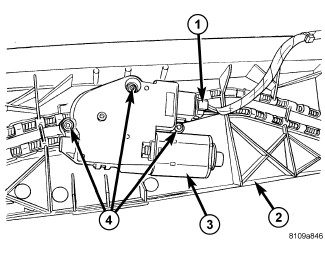

2. Disconnect the electrical connector (1).
3. Remove three motor assembly attaching screws from bottom side of motor assembly.
4. Remove motor assembly from the motor bracket.
