Sunroof Drain Tube - Removal
REMOVAL

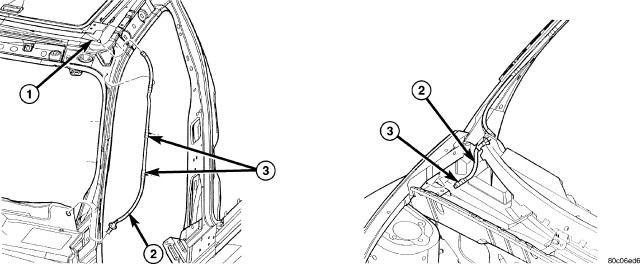

FRONT DRAIN TUBE
1. Move glass panel to the fully closed position.
2. Remove sunroof opening trim lace Sunroof Trim Lace - Removal.
3. Disconnect the control switch and wire connector.
4. Remove headliner Headliner - Removal.
5. Disconnect the drain tube (2) from the sunroof housing.
6. Drain any liquid from tube connection, if necessary.
7. Attach new drain tube to old tube with tape that is to be replaced.
8. Work the old tube back and forth to loosen the sealer.
9. Use care and pull the old tube out through the bottom and the new tube through.

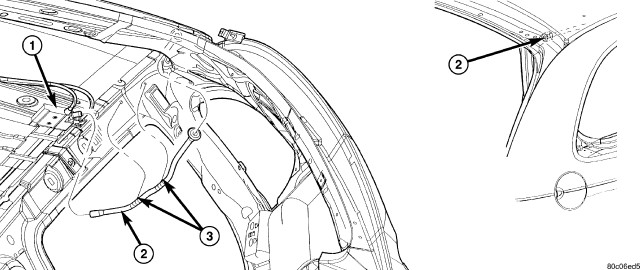

REAR HOUSING TUBE
1. Move glass panel to the fully closed position.
2. Remove sunroof opening trim lace Sunroof Trim Lace - Removal.
3. Disconnect the control switch and wire connector.
4. Remove headliner Headliner - Removal.
5. Disconnect the drain tube (2) from the sunroof housing.
6. Drain any liquid from tube connection, if necessary.
7. Attach new drain tube to old tube with tape that is to be replaced.
8. Work the old tube back and forth to loosen the sealer.
9. Use care and pull the old tube out through the bottom and the new tube through.
