Sunroof Drain Tube - Installation

INSTALLATION

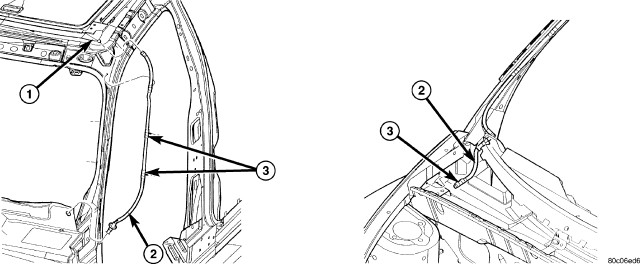

FRONT TUBE

1. Connect the new drain tube (2) to the sunroof housing and test drainage.
2. Install headliner Headliner - Installation.
3. Install sunroof opening trim lace Sunroof Trim Lace - Installation.
4. Connect the control switch wire connector and install control switch.
5. Verify sunroof operation and alignmentAdjustments.

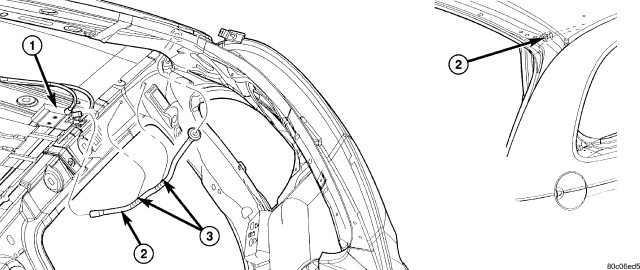

REAR HOUSING TUBE
