Sunroof Sunshade - Installation

INSTALLATION










1. From top of the vehicle through roof opening place sunshade into position, rotating rear guide feet of sunshade into opening of track.
2. Guide front sunroof feet through front opening and into the track grooves.
3. Set trough assembly in position on sunroof assembly. Ensure that the trough crosses over the top of the sunshade.

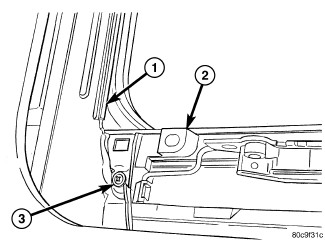

4. Install two screws (3) attaching trough guide to trough assembly. Tighten screws to 1 Nm (9 in. lbs.).
