Side Rail

INSTALLATION

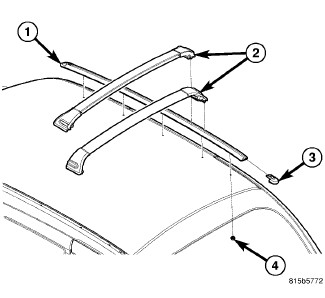

1. Position the luggage rack side rail (1) being serviced onto the top of the vehicle.
2. Apply a suitable body sealer to the side rail studs and install the five nuts (4). Tighten the nuts securely.
3. Reinstall the headliner and trim panels as necessary Headliner - Installation.
4. Install the crossbars (2) and end caps (3).
