Interior Rearview Mirror - Installation

COUPE

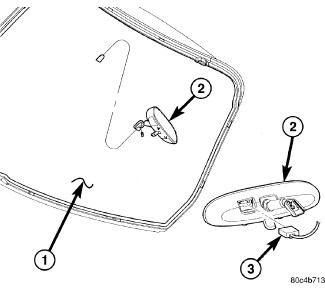

1. Position the mirror base at the bracket and slide it downward onto the support bracket.
2. Tighten the set screw.
3. If compass equipped, the technician must perform compass calibration Adjustments
