Glove Box Door Latch - Removal

REMOVAL





1. Open the glove box bin.

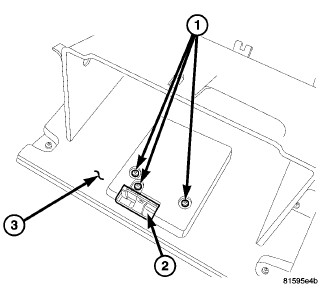

2. Remove the three screws (1) that secure the glove box latch (2) to the glove box door (3) and remove the latch.
3. If required, remove the glove box lock cylinder from the glove box latch Glove Box Lock Cylinder - Removal.
