Belly Pan - Removal

REMOVAL





1. Raise and support the vehicle.

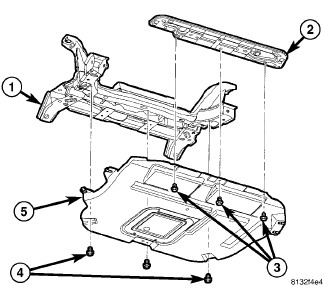

2. Remove the screws (3) and push-pin retainers (4) that secure the front belly pan (5) to the front suspension assembly (1) and crossmember (2).
3. Remove the front belly pan from the underside of the vehicle.
