Body Side Molding - Installation

INSTALLATION

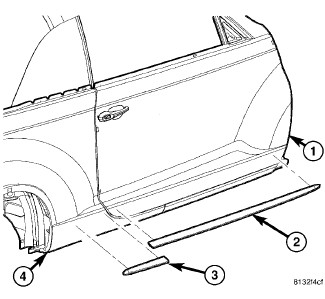

NOTE: Convertible model shown in illustration. Sedan model similar.





1. Clean panel surfaces with isopropyl alcohol.
2. Position the body side moldings (2 and 3) to the front door (1) and quarter panel or rear door (4) (depending on application) and align the moldings to the previously marked locations.
3. Install and press the moldings securely to ensure the adhesive fully adheres to the body panels.
4. Clean away the reference points previously marked.
