Trunk Welt - Removal
Trunk Welt - Removal
REMOVAL
1.
Fold rear seats forward.
2.

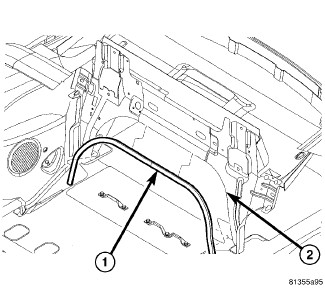

Start at a lower edge of welt and pull welt from rear
seat back
support (2).
3.
Remove pass through welt (1) from vehicle.
