Trunk Welt - Installation

INSTALLATION

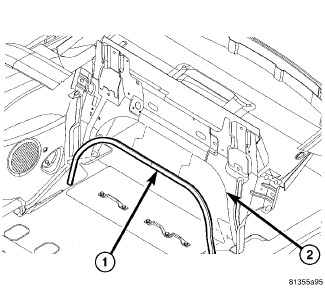

1. Place pass through welt into position (1).
2. Align paint dot on welt to BIW welt joint at top of pass through opening, and press onto flange. Trim welt over quarter trim as necessary.
3. Move rear seats to the upright position.
