Lock Cylinder - Removal

REMOVAL

NOTE: Do not remove the E-clip from the back of the lock cylinder.





1. Disconnect and isolate the negative battery cable.
2. Remove the latch control Latch - Removal.

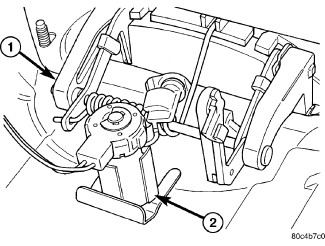

3. Disengage the retainer clip that secures the lock cylinder (2) to the liftgate (1) and remove the lock cylinder and gasket.
