Hood Prop Rod - Installation

INSTALLATION

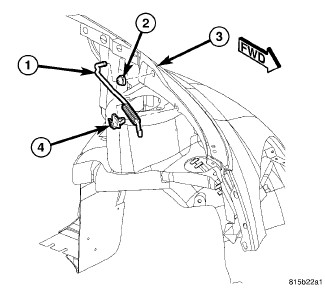

1. If removed, install a new bushing (2) and retaining clip (4) into the fender (3).
2. Engage the hood prop rod (1) into the bushing. Make sure the prop rod is fully engage to the bushing.
3. Install the hood prop rod into the retaining clip and close the hood.
