Front Door - Removal

COUPE

NOTE: The retaining clips used on the door hinge pins are not to be reused. Verify availability prior to proceeding.










1. Open and support door on a suitable lifting device.
2. Disconnect wire connector at hinge pillar, if necessary.
3. Mark the location of the hinge.
4. Remove bolts attaching door check strap to hinge pillar.

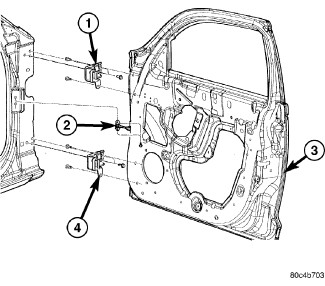

5. Remove bolts attaching lower hinge (4) to door.
6. Remove bolts attaching upper hinge (1) to door.
7. Remove door (3) from vehicle.
