Rear Bumper Fascia - Installation

INSTALLATION

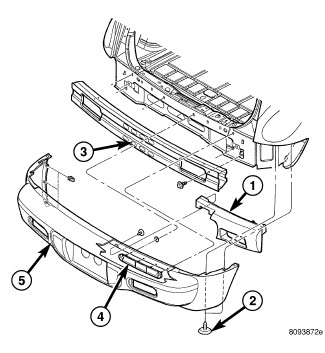

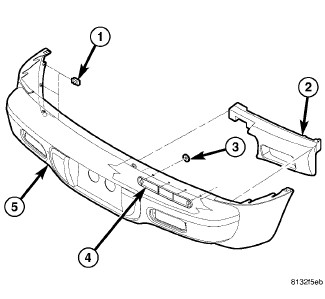

1. Position fascia (5) on vehicle.
2. Position fascia slots to push pins (2) on lower quarter panels
3. Slide fascia (5) forward on push pins (2).










4. Install screws (2) attaching fascia to lower quarter panels.
5. Install splash shield in the wheel opening area Splash Shield - Installation.
6. Connect license lamp.










7. Lower vehicle.
8. Install nuts (1) attaching fascia to lower floor closure.
9. Install the rubber body plugs or install new mastic tape patches, if equipped.
10. Close liftgate.
